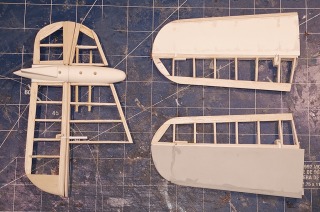

| edtherenderman | Cleveland Westland Whirlwind | Build | 23-Jan-22 20:00 |  | | Views : 704 | | Empennage! The fin, rudder, horizontal stab, elevator and center section that they all connect to. The center section on the original model was to be carved from balsa block, but I 3D printed it instead. Using bamboo skewers to attach all parts. Elevator and bottom rudder hinge is made using .40 mm styrene shaped to fit into slots cut in leading edges with pins that will slot into the trailing edges of the fin and Horizontal Stab. Horizontal Stabs are covered in 110 lb card stock CAed in place. |

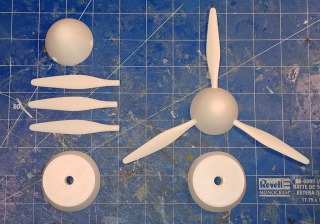

| edtherenderman | Cleveland Westland Whirlwind | Build | 23-Jan-22 19:54 |  | | Views : 673 | | Work continues on the Whirlwind. 3D printed the nacelle parts including the front, spinners and propeller blades, three right rotation, three left rotation. |
|
|
