Scratch Built Gloster E28/39 by hjlittman. Viewed 437 times.
Build Thread
|
|
|
| Image Comments |
| hjlittman | 25-Jan-26 00:43 | | V |

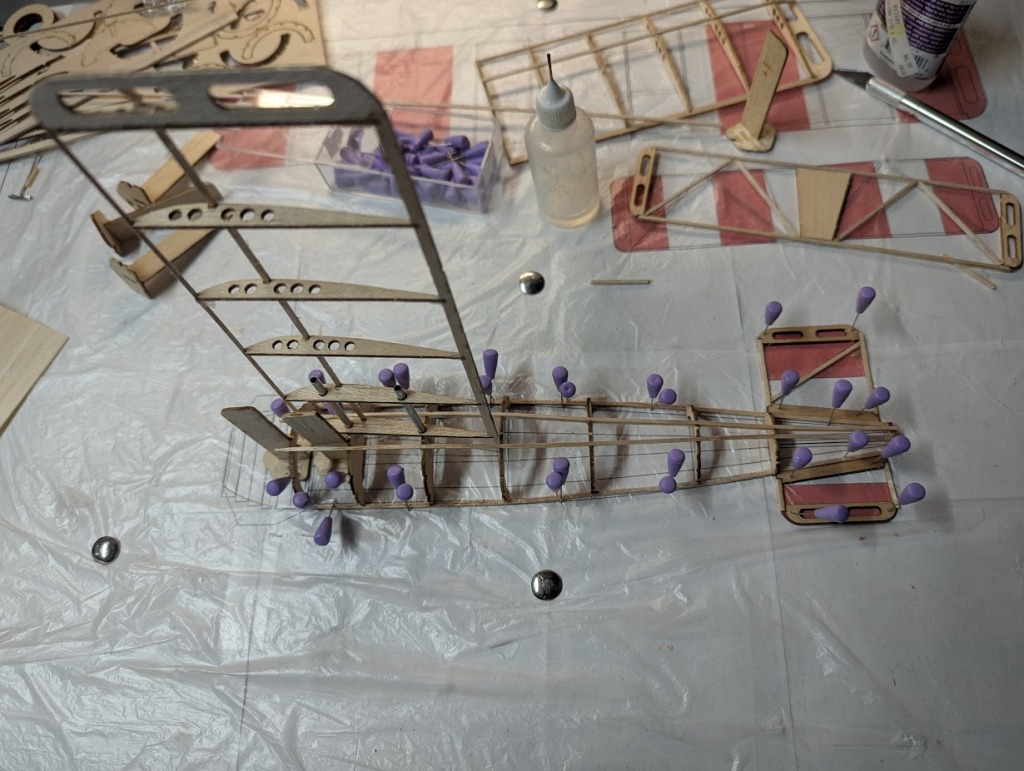

| hjlittman | 25-Jan-26 00:45 | | Now, to put this together. I glued the stub spars in place to the formers before I glued the formers in place. With all the formers on this side of the model I made sure they were perpendicular to the keels by using right angle tools. (See previous post.). Since there is no space for a side keel, which would have to go right through the wing, the stringers above and below the wing position act a side keels. To ensure that the spacing between the two wing mount formers remains correct I slipped the wing over the stub spars before attaching the stringers. |
|
|
