Scratch Built Percival Q6 by bobgood. Viewed 350 times.
Build Thread
Next Prev Click image to return.

Image Comments
bobgood07-Feb-26 16:38
bobgood07-Feb-26 16:40

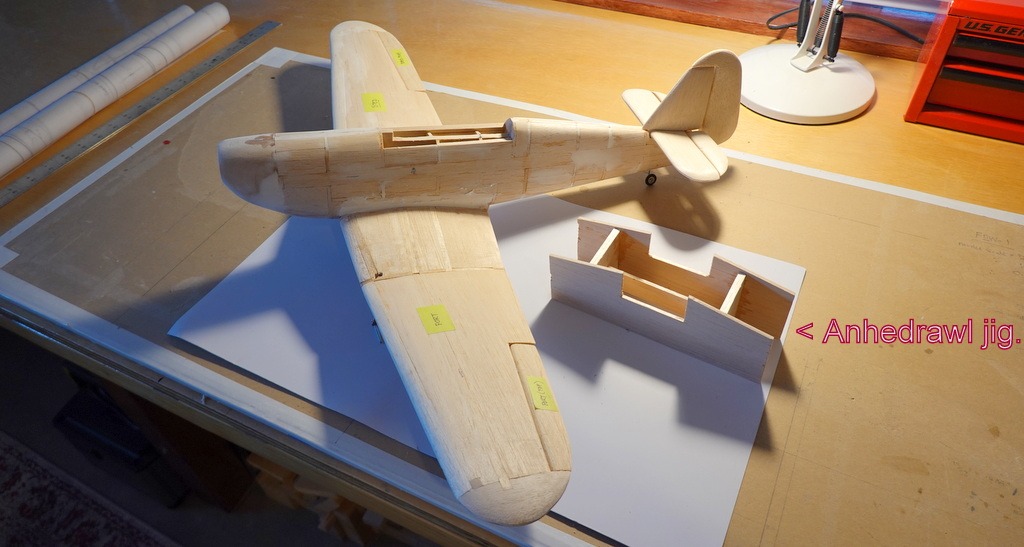

I made this simple jig to set my "double" dihedral, it worked foe me. The Master model is 29" span, for ref.That jig of mine is about 8"wide.
bobgood07-Feb-26 16:42
The "angles of dihedral are 9 degrees on the Master aircraft.
bobgood07-Feb-26 18:59
.....it looks very similar on the CV Corsair!
bobgood07-Feb-26 18:59
sorry! No "W" in Anhedral.
