| Image Comments |
| edtherenderman | 21-Jun-22 11:17 |

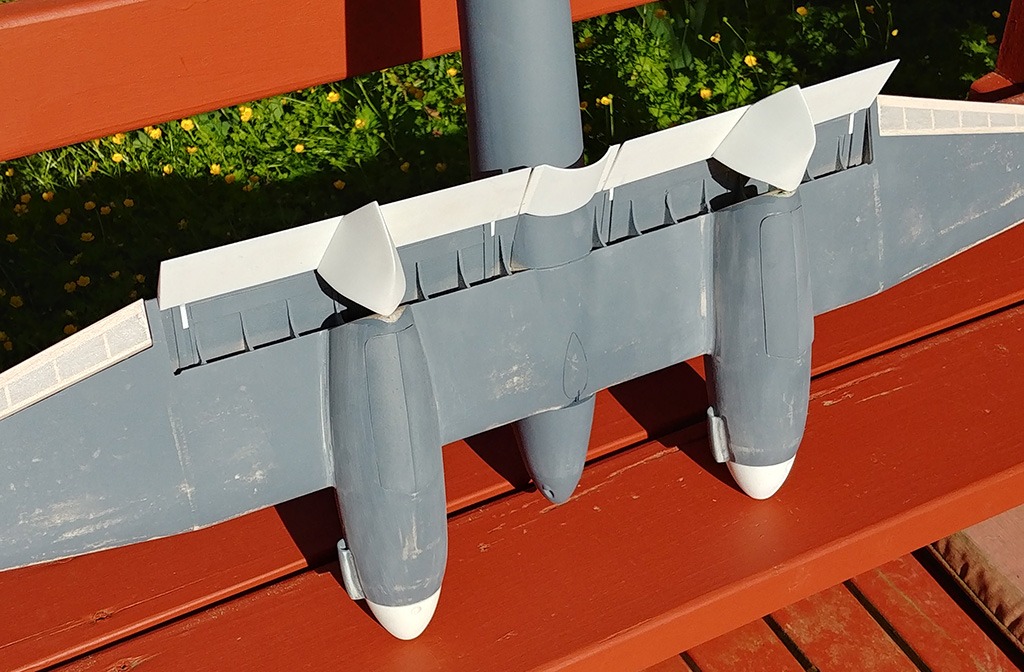

| Closeup of flaps |
| BriandKilby | 21-Jun-22 17:31 |
| looks good ed! the flaps just slide out? |
| edtherenderman | 21-Jun-22 17:40 |
| Thanks Brian. Yes, they are on slides. The arms pivot inside the flaps and there is a pin in the outer edge that slides in a track along the bottom surface of the wing. |
| edtherenderman | 21-Jun-22 17:43 |
| Here is a picture of the design. http://www.virtualaerodrome.com/image_detail.html?p_aircraft_id=732&p_user_id=1412&p_image_id=43731 I have a bunch of pictures in this area of the blog of the mockup I made to test out the function. |
| BriandKilby | 21-Jun-22 19:24 |
| way to incorporate the rail into the flaps. |
| edbecky | 22-Jun-22 08:33 |
| This is nice. You really do some great work. |
| heywooood | 22-Jun-22 20:55 |
| nice engineering and quality of workmanship here for sure! |
